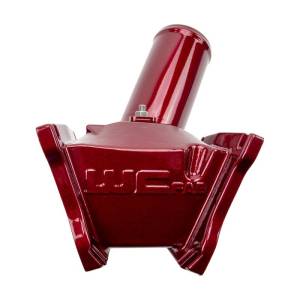

Wehrli Custom Fabrication 2007.5-2010 LMM Duramax High Flow 3" Y-Bridge Kit - WCF100164

WCF100164
-36% Improvement in Air Flow Over Stock
-Eliminates restrictions and known failure points in OEM design

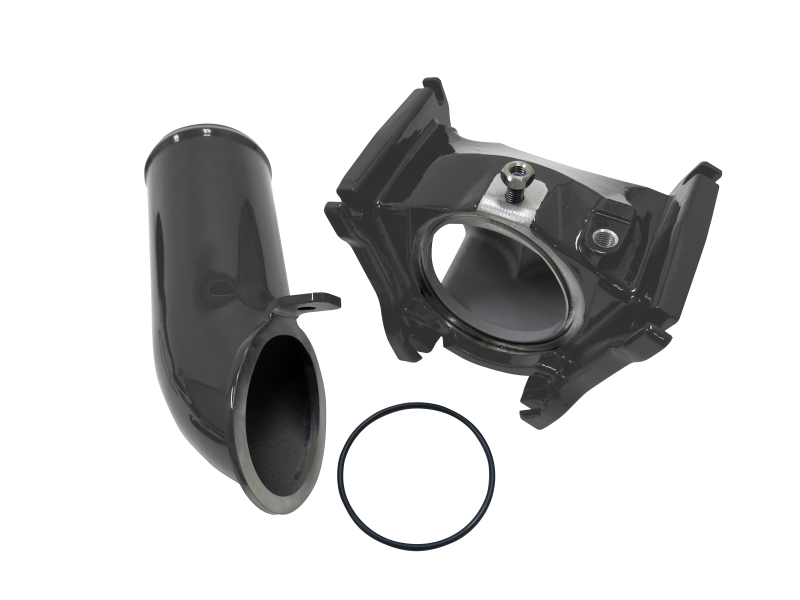

-WCFab's Signature 3" Two Piece Y-Bridge
-3" Upper Intercooler Crossover Pipe
-3" Lower Intercooler Pipe
-High Quality Silicone Boot
-Stainless Steel T-Bolt Clamps
-Map Sensor Seal
-High Temp O-Ring Seals for Grid Heater and EGR
-Y-Bridge O-Ring Flange Seals
-New Up Pipe to EGR Gasket
-Includes New Grid Heater Install Hardware
-New Throttle Valve Support Bracket
-No Tuning Required, Bolt On!
-Compatible with stock trucks. No other modifications or upgrades necessary!
-Custom Powder Coat Finish
-Made in USA
Availability: WCFab Red, WCFab Grey and Gloss Black in stock and ships in 3-5 business days. 10-15 business day lead time on other colors.
Was: $995.00
Sale: $945.00
Save: 5%
Save: $50.00

Customize Your Item

- Model Year -
 * required
- Powder Coating -
 * required
- Tag (Logo) Finish (PCUCTAG) -
 * required
- 3" Driver Side Intercooler Pipe -
 * required
- 3.5" Pass. Side Intercooler Pipe -
 * required
Qty:
Free Shipping!

Description

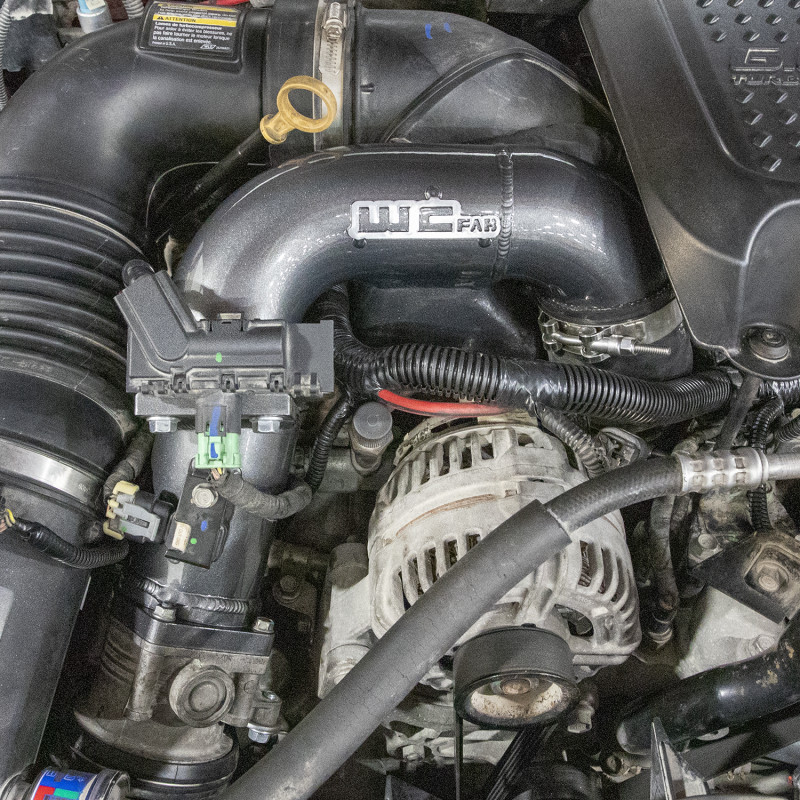

This LMM 3" Y-Bridge Kit is an upgraded high flow intake kit for the 2007.5-2010 LMM 6.6L Duramax which replaces the OEM upper intake manifold supplying air to the engine intake runners. The OEM Y-bridge for these trucks is a poorly designed, slip-fit style two piece bridge with very little support and is prone to blowing apart under boost on hard working and high performance trucks creating poor drivability and decreased power. This kit is a much improved, high flow, bolt together style two piece 3" bridge which provides a secure sealing surface where the air inlet horn connects to the bridge. 3" high flow upper and lower intercooler pipes feature smooth flowing mandrel bends, CNC machined billet flanges and perfectly compliment the y-bridge to offer a full 3" tract from intercooler pipe slip connection to the engine incorporating the factory grid heater, throttle valve, and EGR connection controls. Compatible with OEM lower passenger side intercooler pipe as well as our upgraded 3.5" High Flow Passenger Side Intercooler Pipe Kit WCF100367.

Finished in your choice of custom powder colors. This product is compatible with stock trucks requiring no additional modifications, upgrades, or tuning for installation.

Pairs best with emissions compliant tuning and drop in turbochargers for optimum performance gains.

Replaces the following GM part numbers: 97363569, 97363568, 97364407, 98091149

Video

Details

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W12.0000” x H12.0000” x L32.0000”
  • Free Shipping!
  • This item ships in its own box.
