Wehrli Custom Fabrication S366 SXE with 73MM Turbine and 3-inch V-Band Outlet (66mm/73mm) - WCF100200

(0) Reviews: Write first review
WCF100200
- S300SX-E 66mm Compressor Wheel with 73mm Turbine
- 3” V-Band Outlet
- 360 degree thrust bearing
- Integrated speed sensor port
- Forged milled (FMW) compressor wheel
- Comp. Wheel Inducer Dia. (mm) 66.11
- Comp. Wheel Outer Dia. (mm) 91.44
- Pre-machined boost port
- Optimized compressor stage aerodynamics
- Rated for 500-875 HP
Availability: Raw in stock and ships in 3-5 business days. 10-15 business day lead time on powder coating.
Was: $1,209.00
Sale: $1,169.00
Save: 3%
Save: $40.00

Customize Your Item

- S300 Exhaust Housing -
 * required
- T4 Turbo Heat Blanket -
 * required
- Powder Coating -
 * required
- T4 Exhaust Housing Finish -
 * required
- Mating Flange & Clamp -
 * required
Qty:
Free Shipping!

Description

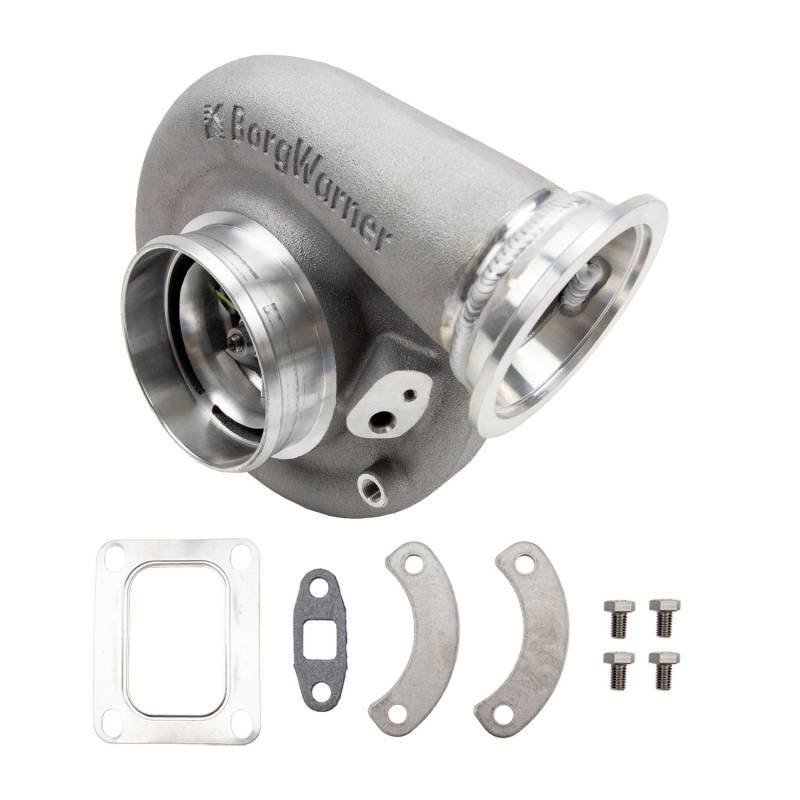

Borg Warner S366 SXE Turbo with 73mm Turbine. Compressor cover modified by WCFab to replace the standard 2.75" Hose Outlet with a 3" V-Band Outlet. Originally created for use with our 2nd Gen Swap kits for the 5.9 Cummins, these turbos can also be used for any application requiring a v-band outlet connection. Super-Core (center section and compressor cover) only, exhaust turbine housing sold separately. All turbine housing mounting hardware, clamp plates and cap screws included with Super-Core.and 3" V-Band Boot Outlet. Super-Core (center section and compressor cover) only, exhaust turbine housing sold separately. All turbine housing mounting hardware, clamp plates and cap screws included with Super-Core.

*Not included with turbo assemblies: Speed sensor, Drain port fitting*

Details

  • WCF100200
  • WCF100200
  • Wehrli Custom Fabrication
  • Raw in stock and ships in 3-5 business days. 10-15 business day lead time on powder coating.
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W15.0000” x H15.0000” x L13.0000”
  • Free Shipping!
  • This item ships in its own box.
