HSP Diesel Deluxe No Bridge/Cold Side Bundle Kit For 2006-2007 Silverado/Sierra 2500/3500 - D-394-HSP

Cold Air Intake

D-394-HSP
Pricing: $1,562.75

Customize Your Item

- Select Color -
 * required
Qty:
Free Shipping!

Description

The 394-HSP is best known as the Max Air Flow Bundle for the 2006 and 2007 LBZ Duramax-equipped Chevrolet and GMC trucks. This bundle kit is everything you need to get the maximum performance out of that LBZ with all of your emissions systems intact!

What is the Max Air Flow Bundle for the LBZ Duramax?

The Max Air Flow Bundle for the LBZ Duramax is everything that HSP Diesel makes to increase performance on the 2006 and 2007 LBZ trucks. This bundle kit is perfect for the person looking to do everything you can at one time and wanting to save some money because we do a bundle.

Tell us about the Billet Thermostat Housing Kit that comes in the Max Air Flow Bundle

The Billet Thermostat Housing Kit that is inside the Max Air Flow Bundle is a great addition to any truck. The factory setup is clunky and is in the way often to not only work on things but make upgrades much easier. This kit removes the factory coolant hose that crosses over the driver-side valve cover this makes room for injection pump modifications. Using a CNC machined billet aluminum upper thermostat this part not only works amazing but looks much better than the factory parts.

Tell us about the Hot Side Intercooler Tube that comes in Max Air Flow Bundle

The factory hot side intercooler pipe is a design that just doesn't work well for the long term. We often see a failure of this pipe due to the way the connections are made. This is why we made the lower intercooler connection a straight style connection into the intercooler. This removed the possibility of that common failure point. We also increased the size of the HSP Diesel hot side intercooler tube to a 3 Inch diameter that is also mandrel-bent. This increases flow and decreases the turbulence of that air that is traveling through the charge air system.

Tell us about the VGT Intake Mouthpiece that comes in the Max Air Flow Bundle

The factory intake mouthpiece is restrictive and does not look great under the hood of these trucks. This is why HSP Diesel created the VGT Intake Mouthpiece, not only does it look so much better but with our handmade design and increase in size, we were able to increase the flow and thus increasing the power the truck can make. Using an O-ring style seal we were able to make sure that the HSP Diesel VGT Intake Mouthpiece creates a tight seal and prevents boost leaks.

Tell us about the Cold Air Intake that comes in the Max Air Flow Bundle

The HSP Diesel Cold Air Intake makes major changes over the factory system. Using a 4 1/2 inch mandrel-bent intake tube we increased the amount of air that the intake can bring in. Using the HSP Diesel heatshield box you can rest easy knowing that the intake is only taking in the cold air and not bringing in the heat from the engine bay. On average we have seen on the dyno a 20 horsepower and 58 pounds of torque increase.

Tell us about the Factory Replacement Coolant Tank that comes in the Max Air Flow Bundle

The factory design of the coolant tank in the Duramax trucks is an unsightly design that fails often. The major reason for the failure and the looks is because the factory part is made from plastic and that causes issues in cracking. The plastic is also known to turn yellow due to the heat and coolant. This is why the HSP Diesel Factory Replacement Coolant Tank is hand-welded aluminum that not only holds up to the test of time and abuse, but because we can powder coat the tank it can match the accent under the hood and look much better than the factory parts.

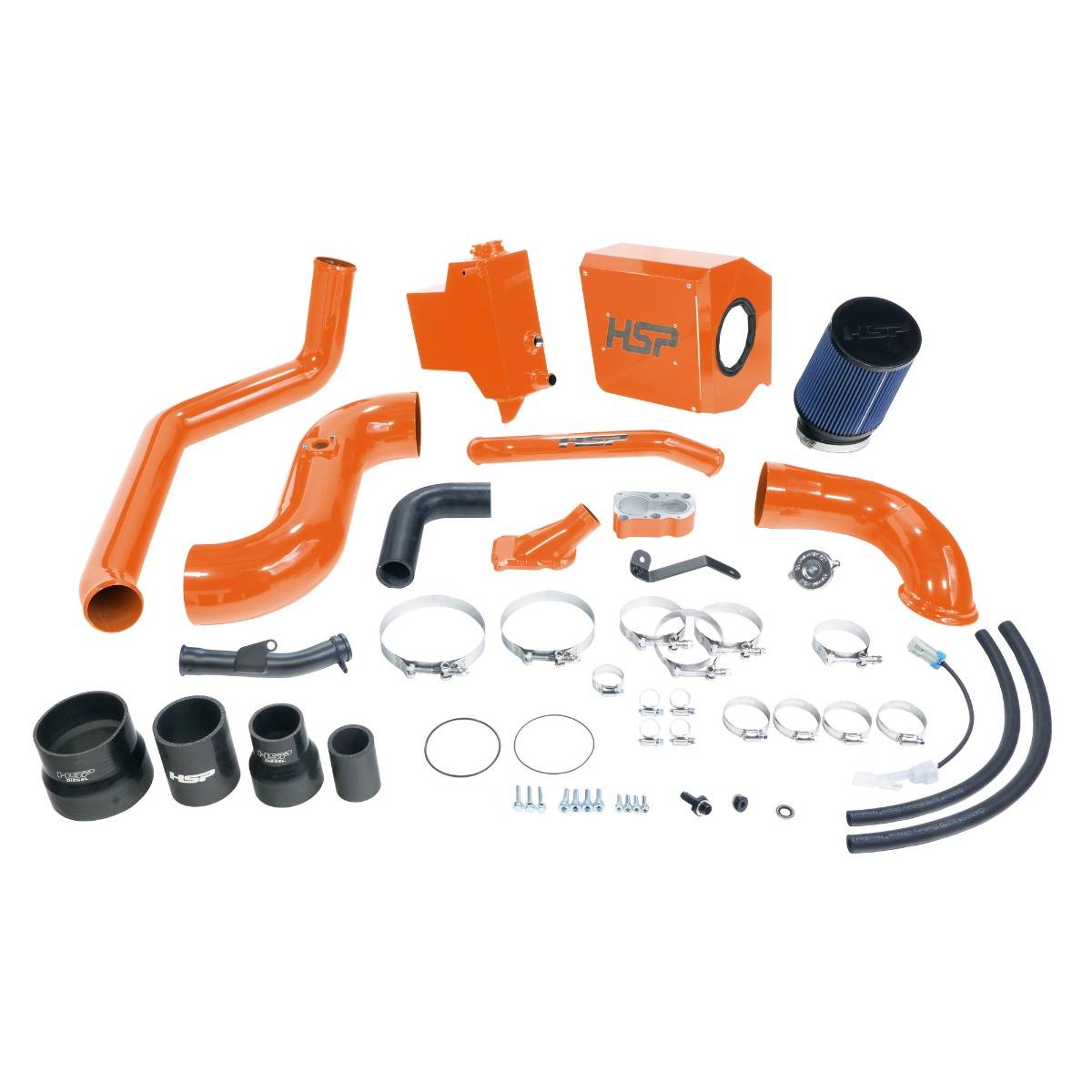

What comes with the Max Air Flow Bundle?

  • (1) Cold Air Intake
  • (1) 3 Inch Mandrel Bent Hot Side Pipe
  • (1) Billet Thermostat Housing Kit
  • (1) VGT Intake Mouthpiece
  • (1) 1.75 Inch Radiator Hose Tube
  • (1) 3 Inchx4 Inch Straight Boot
  • (3) 3 Inch T-Bolt Clamp
  • (1) 2.25 Inch to 3 Inch Reducer Boot
  • (1) 2.25 Inch T- Bolt Clamp
  • (1) 4 Inch T-Bolt Clamp
  • (1) 4.5 Inch T-Bolt Clamp
  • (3) 1/2 inch Worm Gear Clamp
  • (16 inch) Trim Seal
  • (1) 1 inch Worm Gear Clamp
  • (18 inch 3/8 inch Heater Hose
  • (1) 1.75 Inchx3 Inch Straight Boot
  • (1) 1.75 Inchx90 degree Boot
  • (1) 1 3/4 Inch Worm Gear Clamps

What Does The HSP Max Air Flow Bundle Fit?

  • LBZ: 06-07 VIN Code 2 or D

How do people know the VIN code?

Engine code is dictated by the 8th character of the VIN number. The 10th character is the year of the truck.

Overview

  • Increased performance
  • High flowing cold air intake
  • For use with emissions in tact
  • 3 Inch Diameter hot and cold side tubes
  • Increased Spool up
  • Powder Coat options for a clean look under the hood
  • Bundle kit gives you more for your money
  • Major problems fixed at one time

Our Warranty

HSP No BS Limited Lifetime Warranty

At HSP we believe in our products and we stand firmly behind every single one that leaves our facility. For years we have taken care of almost everything & anything that our customers had issues with, but we didn't have a set in stone warranty. We have always gone above and beyond for our customers which set us apart from the rest. We will continue that same standard, but now we are taking things to the next level.

Product Videos

Details

Shipping Information

  • Item Requires Shipping
  • 55.0 lbs.
  • W15.0000” x H15.0000” x L48.0000”
  • Free Shipping!
